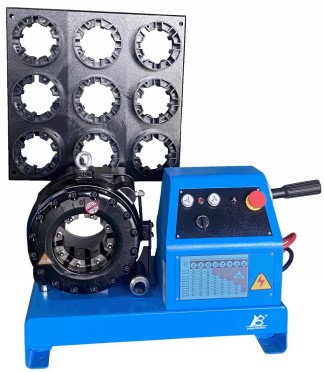

Yuben P20CS hose-crimping machine has been designed to crimp up to 1 1/2” diameter 2-spiral hoses or 1 1/4" 4 SH. And for car-service use. It is fast and easy to use. CS machines are battery powered with 12V or 24V.
FEATURES
Yuben P20CS hose-crimping machine has been designed to crimp up to 1 1/2” diameter 2-spiral hoses or 1 1/4" 4 SH. And for car-service use. It is fast and easy to use. CS machines are battery powered with 12V or 24V.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Max crimping dia (mm) | 10-61 |
| Max crimping dia (inches) | 0.39-2.40 |
| Max. crimping force (kN) | 1370 |
| Max. crimping force (tonnage) | 137 |
| Cycle time 10 mm (s) | 7.2 |
| Hose size ID (inches) | 1 1/2(2SN) / 1 1/4(4SP) |
| Dies set series | P20 |
| Max. opening (mm) | +25 |
| Max.opening without dies (mm) | 109 |
| Master die D / L (mm) | 84/80 |
| Master die D / L (inches) | 3.31/3.15 |
| Motor (kW) 12V/24V: | 1.6/2.25 |
| Motor (HP) 12V/24V: | 2.1/3.05 |
| Oil tank volume (L) | 4 |
| Crimping /hour | 200 |
DIMENSIONS(L x W x H)
| Machine (mm) | 600X480X480 |
| Machine (inch) | 23.6X18.9X18.9 |
| Package (mm) | 830X630X600 |
| Package (inch) | 32.7X24.8X23.6 |
WEIGHT(KG)
| N, W. | 110 |
| G.W. | 138 |
STANARD FEATURES
| ※QuickChange-tool |
| ※Die wall racks |
P20Dies:
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P20/06* | 6.0 - 8.0 | 6 | 55 |
| P20/08* | 8.0 - 10.0 | 8 | 55 |
| P20/10* | 10.0 - 12.0 | 10 | 55 |
| P20/12* | 12.0 - 14.0 | 12 | 55 |
| P20/14* | 14.0 - 16.0 | 14 | 55 |
| P20/16 | 16.0 - 19.0 | 16 | 55 |
| P20/19 | 19.0 - 23.0 | 19 | 55 |
| P20/23 | 23.0 - 27.0 | 23 | 55 |
| P20/27 | 27.0 - 31.0 | 27 | 70 |
| P20/31 | 31.0 - 36.0 | 31 | 70 |
| P20/36 | 36.0 - 41.0 | 36 | 75 |
| P20/41 | 41.0 - 47.0 | 41 | 75 |
| P20/47 | 47.0 - 54.0 | 47 | 85 |
| P20/54* | 54.0 - 61.0 | 54 | 85 |
| *: Non standard die |
OPTIONS
| ※Foot pedal |
