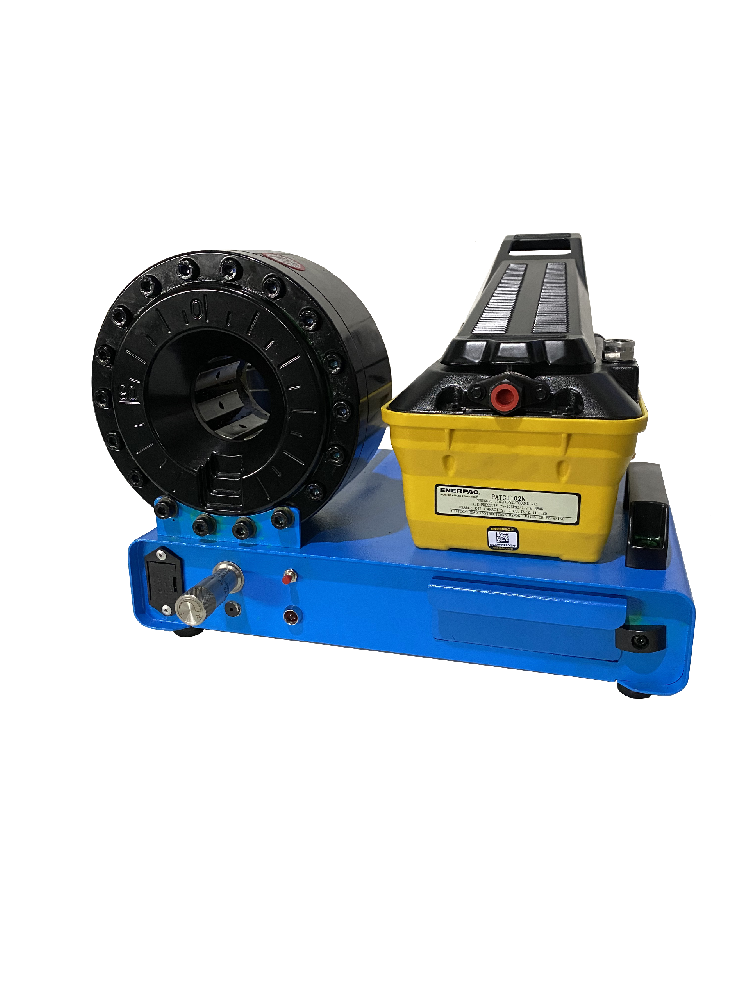

Easy to use, light and compactin size,allowing to be carried to any location.P16AP is air pump operated hydrauliccrimping machine for repairworkshops and field use.
FEATURES
Easy to use, light and compactin size,allowing to be carried to any location.P16AP is air pump operated hydrauliccrimping machine for repairworkshops and field use.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Max crimping dia (mm) | 10-45 |
| Max crimping dia (inches) | 0.39-1.77 |
| Max. crimping force (kN) | 955 |
| Max. crimping force (tonnage) | 95 |
| Cycle time 10 mm (s) | ____ |
| Hose size ID (inches) | 1 |
| Dies set series | P16 |
| Max. opening (mm) | +20 |
| Max.opening without dies (mm) | 59 |
| Master die D / L (mm) | 39/64 |
| Master die D / L (inches) | 1.54/2.52 |
| Motor Power | Air pressure |
| Oil tank volume (L) | ____ |
DIMENSIONS(L x W x H)
| Machine (mm) | 440X400X300 |
| Machine (inch) | 17.3X15.7X11.8 |
| Package (mm) | 600X480X450 |
| Package (inch) | 23.6X18.9X17.7 |
WEIGHT(KG)
| N, W. | 30 |
| G.W. | 42 |
STANARD FEATURES
P16 Dies:
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P16/06* | 6.0 - 8.0 | 6 | 55 |
| P16/08* | 8.0 - 10.0 | 8 | 55 |
| P16/10* | 10.0 - 12.0 | 10 | 55 |
| P16/12* | 12.0 - 14.0 | 12 | 55 |
| P16/14 | 14.0 - 16.0 | 14 | 55 |
| P16/16 | 16.0 - 19.0 | 16 | 55 |
| P16/19 | 19.0 - 23.0 | 19 | 55 |
| P16/23 | 23.0 - 27.0 | 23 | 55 |
| P16/27 | 27.0 - 31.0 | 27 | 65 |
| P16/31 | 31.0 - 38.0 | 31 | 65 |
| *: Non standard die |
Control Mode
| Manual operation |
