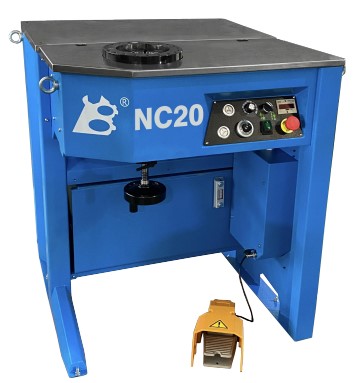

YUBEN NC machine provide fast and accurate crimping for fitting manufacturing. Crimping range is 12-49 mm.
FEATURES
YUBEN NC machine provide fast and accurate crimping for fitting manufacturing. Crimping range is 12-49 mm.
CNC SYSTEM FEATURES
No.info
TECHNICAL DATA
| TECHNICAL DATA | |
| Max crimping dia (mm) | 12-49 |
| Max crimping dia (inches) | 0.47-1.93 |
| Max. crimping force (kN) | 500 |
| Max. crimping force (Tonnage) | 50 |
| Cycle time 10 mm (s) | 1.5 |
| Hose size ID (inches) | 11/4" |
| Dies set series | NC20 |
| Max. opening (mm) | +18 |
| Max.opening without dies (mm) | 117 |
| Master die D / L (mm) | 99/22 |
| Master die D / L (inches) | 3.90/0.87 |
| Motor Tri/Mono (kW/HP) | 3.0/4.0 |
| Oil tank volume (L) | 50 |
| Motor Voltage (V): Tri | 200/220/380/440 |
| Motor Voltage (V): Mono | 220/230/240 |
DIMENSIONS(L x W x H)
| DIMENSIONS (L x W x H) | |
| Machine (mm) | 820X750X1030 |
| Machine (inch) | 32.3X29.5X40.6 |
| Package (mm) | 925X925X1220 |
| Package (inch) | 36.4X36.4X48.0 |
WEIGHT(KG)
| WEIGHT (KG) | |
| Machine N.W. | 287 |
| Machine G.W. | 317 |
STANARD FEATURES
Dies
| NC30 Dies: | |||
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| NC30/12 | 12.0-16.0 | 12 | 3 |
| NC30/16 | 16.0-22.0 | 16 | 4 |
| NC30/22 | 22.0-26.0 | 22 | 4.5 |
| NC30/26 | 26.0-34.0 | 26 | 5 |
| NC30/34 | 34.0-39.0 | 34 | 5 |
| NC30/39 | 39.0-49.0 | 39 | 5 |
| *: Non standard die | |||
Control
| CONTROL |
| ※Semi-Automatic |
| ※Automatic |
| ※CNC |
