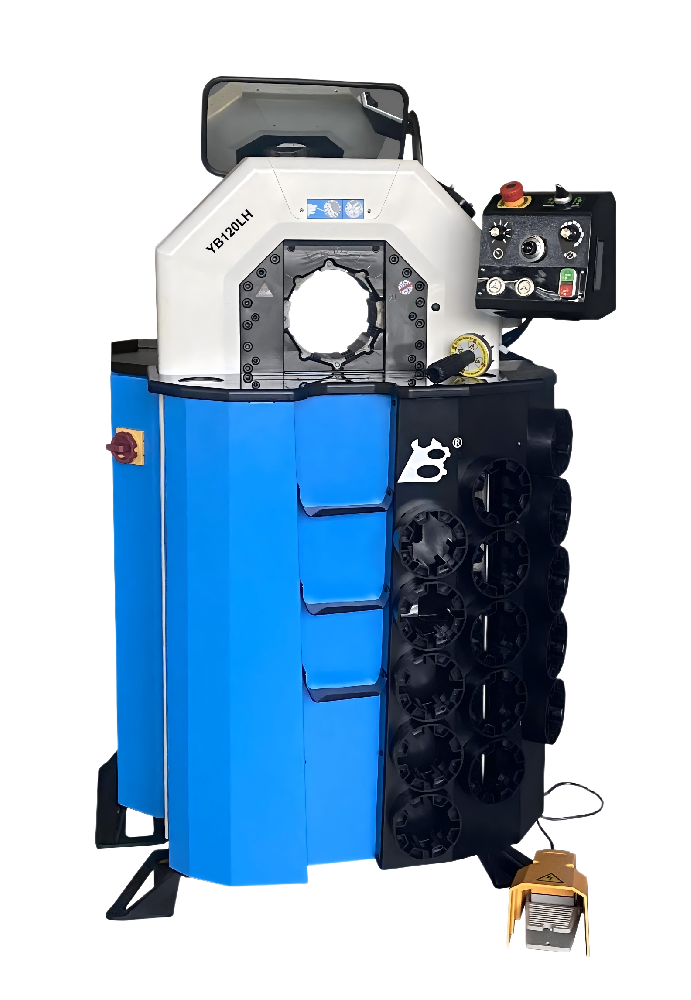

Suitable for batch production, high efficiency, high stability. Save operator's strength by compact ergonomic design make .
FEATURES
Suitable for batch production, high efficiency, high stability. Save operator's strength by compact ergonomic design make .
CNC SYSTEM FEATURES
| ※Setup Max. opening |
| ※Pressure maintaining time delay function |
| ※Backstop control |
※Foot pedal control |
TECHNICAL DATA
| Max crimping dia (mm) | 118 |
| Max crimping dia (inches) | 4.65 |
| Max. crimping force (kN) | 2450 |
| Max. crimping force (tonnage) | 245 |
| Cycle time 10 mm (s) | 1.8 |
| Hose size ID (inches) | 2" (R13) |
| Dies set series | P20 & YB120L |
| Max. opening (mm) | +52 |
| Max.opening without dies (mm) | 170 |
| Master die D / L (mm) | 118/97 |
| Master die D / L (inches) | 4.65/3.82 |
| Motor Power (kW/HP) | 4/5.44 |
| Oil tank volume (L) | 90 |
| Motor Voltage (V)： Tri | 200/220/380/400/440 |
DIMENSIONS(L x W x H)
| Machine (mm) | 900X800X1600 |
| Machine (inch) | 35.4X31.5X63.0 |
| Package (mm) | 1025X1025X1740 |
| Package (inch) | 40.4X40.4X68.5 |
WEIGHT(KG)
| N, W. | 790 |
| G.W. | 840 |
STANARD FEATURES
| ※QuickChange-tool |
| ※Mirror |
| ※Electric backstop device |
| ※Die racks |
| ※Foot pedal |
P20 Dies:
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P20/06* | 6.0 - 8.0 | 6 | 55 |
| P20/08* | 8.0 - 10.0 | 8 | 55 |
| P20/10* | 10.0 - 12.0 | 10 | 55 |
| P20/12* | 12.0 - 14.0 | 12 | 55 |
| P20/14 | 14.0 - 16.0 | 14 | 55 |
| P20/16 | 16.0 - 19.0 | 16 | 55 |
| P20/19 | 19.0 - 23.0 | 19 | 55 |
| P20/23 | 23.0 - 27.0 | 23 | 55 |
| P20/27 | 27.0 - 31.0 | 27 | 70 |
| P20/31 | 31.0 - 36.0 | 31 | 70 |
| P20/36 | 36.0 - 41.0 | 36 | 75 |
| P20/41 | 41.0 - 47.0 | 41 | 75 |
| P20/47 | 47.0 - 52.0 | 47 | 85 |
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| YB120L/52 | 52.0 - 57.0 | 52 | 85 |
| YB120L/57 | 57.0 - 63.0 | 57 | 85 |
| YB120L/63 | 63.0 - 69.0 | 63 | 115 |
| YB120L/69 | 69.0 - 74.0 | 69 | 115 |
| YB120L/74* | 74.0 - 79.0 | 74 | 115 |
| YB120L/79* | 79.0 - 84.0 | 79 | 115 |
| YB120L/84* | 84.0 - 92.0 | 84 | 115 |
| YB120L/92* | 92.0 - 100.0 | 92 | 115 |
| YB120L/100* | 100.0 - 110.0 | 100 | 115 |
| *: Non standard die | |||
| With adapter dies |
CONTROL
| ※Semi-Automatic |
| ※Automatic |
| ※CNC |
