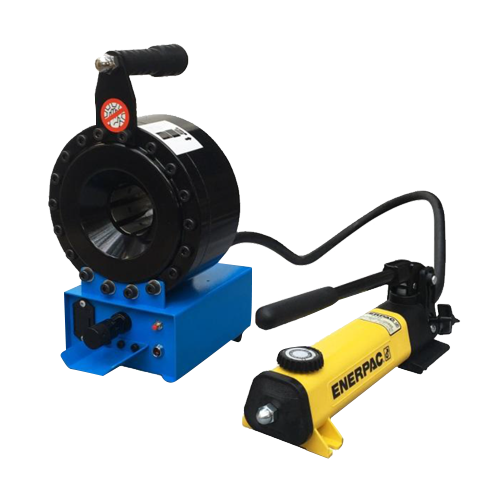

P16HPZ ENERPAC is hand pump operated hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size, allowing to be carried to any location.
FEATURES
P16HPZ ENERPAC is hand pump operated hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size, allowing to be carried to any location.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Max crimping dia (mm) | 10-45 |
| Max crimping dia (inches) | 0.39-1.77 |
| Max. crimping force (kN) | 955 |
| Max. crimping force (tonnage) | 95 |
| Cycle time 10 mm (s) | ____ |
| Hose size ID (inches) | 1 |
| Dies set series | P16 |
| Max. opening (mm) | 20 |
| Max.opening without dies (mm) | 59 |
| Master die D / L (mm) | 39/64 |
| Master die D / L (inches) | 1.54/2.52 |
| Motor (kW/HP) | ____ |
| Oil tank volume (L) | ____ |
DIMENSIONS(L x W x H)
| P16HP (mm) | 330X450X291 |
| P16HP (inch) | 13X17.7X11.5 |
| P16HPZ (mm) | 150X250X380 |
| P16HPZ (inch) | 5.9X9.8X15 |
| Package (mm) | 475X430X410 |
| Package (inch) | 18.7X16.9X16.1 |
WEIGHT(KG)
| P16HP N, W. | 26 |
| P16HP G.W. | 34 |
| P16HPZ N, W. | 24 |
| P16HPZ G.W. | 32 |
STANARD FEATURES
P16 Dies:
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P16/06* | 6.0 - 8.0 | 6 | 55 |
| P16/08* | 8.0 - 10.0 | 8 | 55 |
| P16/10* | 10.0 - 12.0 | 10 | 55 |
| P16/12* | 12.0 - 14.0 | 12 | 55 |
| P16/14 | 14.0 - 16.0 | 14 | 55 |
| P16/16 | 16.0 - 19.0 | 16 | 55 |
| P16/19 | 19.0 - 23.0 | 19 | 55 |
| P16/23 | 23.0 - 27.0 | 23 | 55 |
| P16/27 | 27.0 - 31.0 | 27 | 65 |
| P16/31 | 31.0 - 38.0 | 31 | 65 |
| *: Non standard die |
CONTROL
| Manual |
