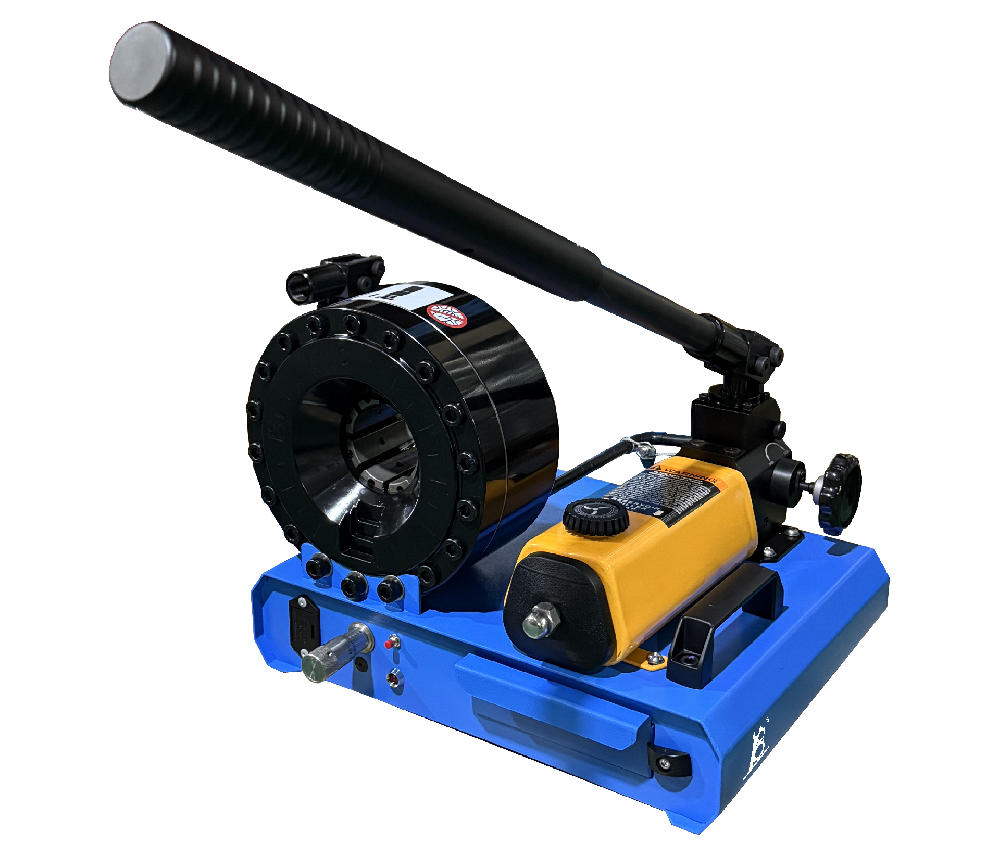

P18HP hose-crimping machine has been designed to crimp up to 1”diameter4-spiral hoses. It is hand pump operated hydraulic crimping machine for repair workshops andfield use. Easy to use, light and compact in size, allowing to be carried to any location.
FEATURES
P18HP hose-crimping machine has been designed to crimp up to 1”diameter4-spiral hoses. It is hand pump operated hydraulic crimping machine for repair workshops andfield use. Easy to use, light and compact in size, allowing to be carried to any location.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Max crimping dia (mm) | 10-54 |
| Max crimping dia (inches) | 0.39-2.13 |
| Max. crimping force (kN) | 1100 |
| Max. crimping force (tonnage) | 110 |
| Cycle time 10 mm (s) | ____ |
| Hose size ID (inches) | 1*4sp |
| Dies set series | P18 |
| Max. opening (mm) | +20 |
| Max.opening without dies (mm) | 68 |
| Master die D / L (mm) | 48/64 |
| Master die D / L (inches) | 1.89/2.52 |
| Motor Power | Hand pump |
| Oil tank volume (L) | ____ |
DIMENSIONS(L x W x H)
| Machine (mm) | 430X450X320 |
| Machine (inch) | 16.9X17.7X12.6 |
| Package (mm) | 625X505X510 |
| Package (inch) | 24.6X19.9X20.1 |
WEIGHT(KG)
| N, W. | 45 |
| G.W. | 55 |
STANARD FEATURES
Dies:
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P18/06* | 6.0 - 8.0 | 6 | 55 |
| P18/08* | 8.0 - 10.0 | 8 | 55 |
| P18/12* | 12.0 - 14.0 | 12 | 55 |
| P18/14 | 14.0 - 16.0 | 14 | 55 |
| P18/16 | 16.0 - 19.0 | 16 | 55 |
| P18/19 | 19.0 - 23.0 | 19 | 55 |
| P18/23 | 23.0 - 27.0 | 23 | 55 |
| P18/27 | 27.0 - 31.0 | 27 | 65 |
| P18/31 | 31.0 - 36.0 | 31 | 65 |
| P18/36 | 36.0 - 41.0 | 36 | 65 |
| P18/41 | 41.0 - 47.0 | 41 | 65 |
| *: Non standard die |
CONTROL
Manual
