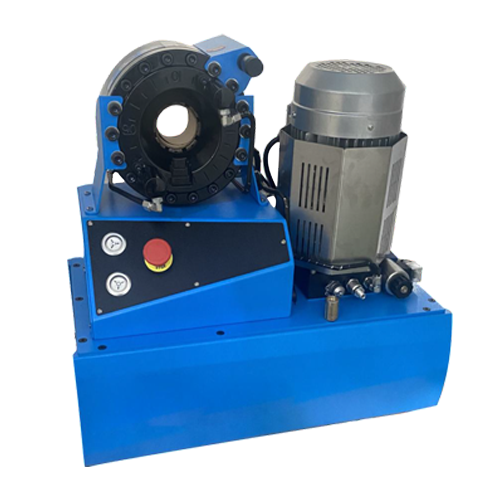

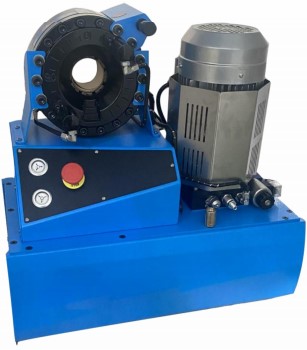

P18X hose-crimping machine has been designed to crimp up to 3/4” diameter 4-spiral hoses. It is small hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size.
FEATURES
P18X hose-crimping machine has been designed to crimp up to 3/4” diameter 4-spiral hoses. It is small hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Max crimping dia (mm) | 10-54 |
| Max crimping dia (inches) | 0.39-2.13 |
| Max. crimprce (kN) | 800 |
| Max. crimping force (tonnage) | 80 |
| Cycle time 10 mm (s) | ———— |
| Hose size ID (inches) | 3/4''(4SP) / 1''(2SP) |
| Dies set series | P18 |
| Max.opening | +20 |
| Max.opening without dies(mm) | 68 |
| Master die D/L (mm) | 48/64 |
| Master die D/L (inches) | 1.89/2.52 |
| Motor Power | 2.2KW |
| Oil tank volume (L) | 26 |
| Crimping hour | ———— |
| Motor Voltage(V) Tri | 200/220/380 |
| Motor Voltage(V) Mono | 110/115/220/230/240 |
DIMENSIONS(L x W x H)
| Machine (mm) | 500X500X400 |
| Machine (inch) | 19.7X19.7X15.7 |
| Package (mm) | 625X505X510 |
| Package (inch) | 24.6X19.9X20.1 |
WEIGHT(KG)
| N, W. | 26 |
| G.W. | 29 |
STANARD FEATURES
| ※Foot pedal |
P18 Dies
| P18 Dies: | |||
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P18/06* | 6.0-8.0 | 6 | 55 |
| P18/08* | 8.0-10.0 | 8 | 55 |
| P18/10* | 10.0-12.0 | 10 | 55 |
| P18/12* | 12.0-14.0 | 12 | 55 |
| P18/14 | 14.0-16.0 | 14 | 55 |
| P18/16 | 16.0-19.0 | 16 | 55 |
| P18/19 | 19.0-23.0 | 19 | 55 |
| P18/23 | 23.0-27.0 | 23 | 55 |
| P18/27 | 27.0-31.0 | 27 | 65 |
| P18/31 | 31.0-36.0 | 31 | 65 |
| P18/36 | 36.0-41.0 | 36 | 65 |
| P18/41 | 41.0-47.0 | 41 | 65 |
| *: Non standard die | |||
OPTIONS
