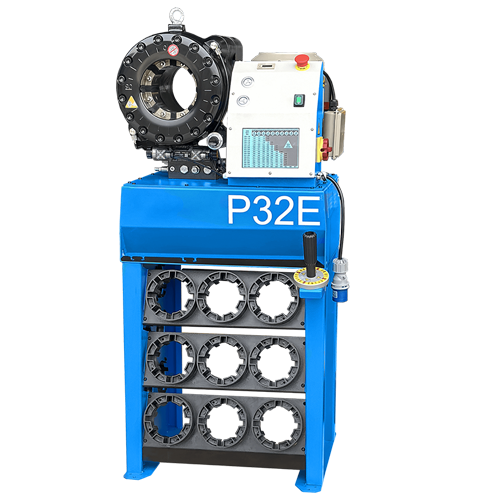

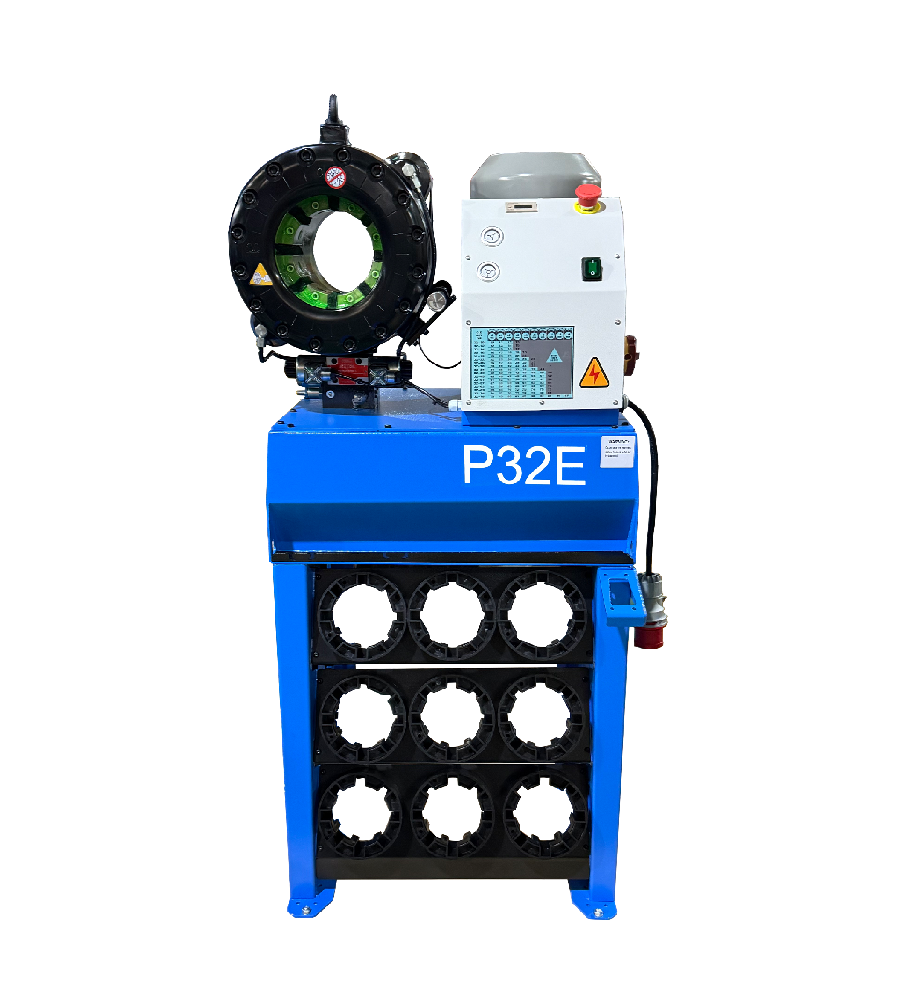

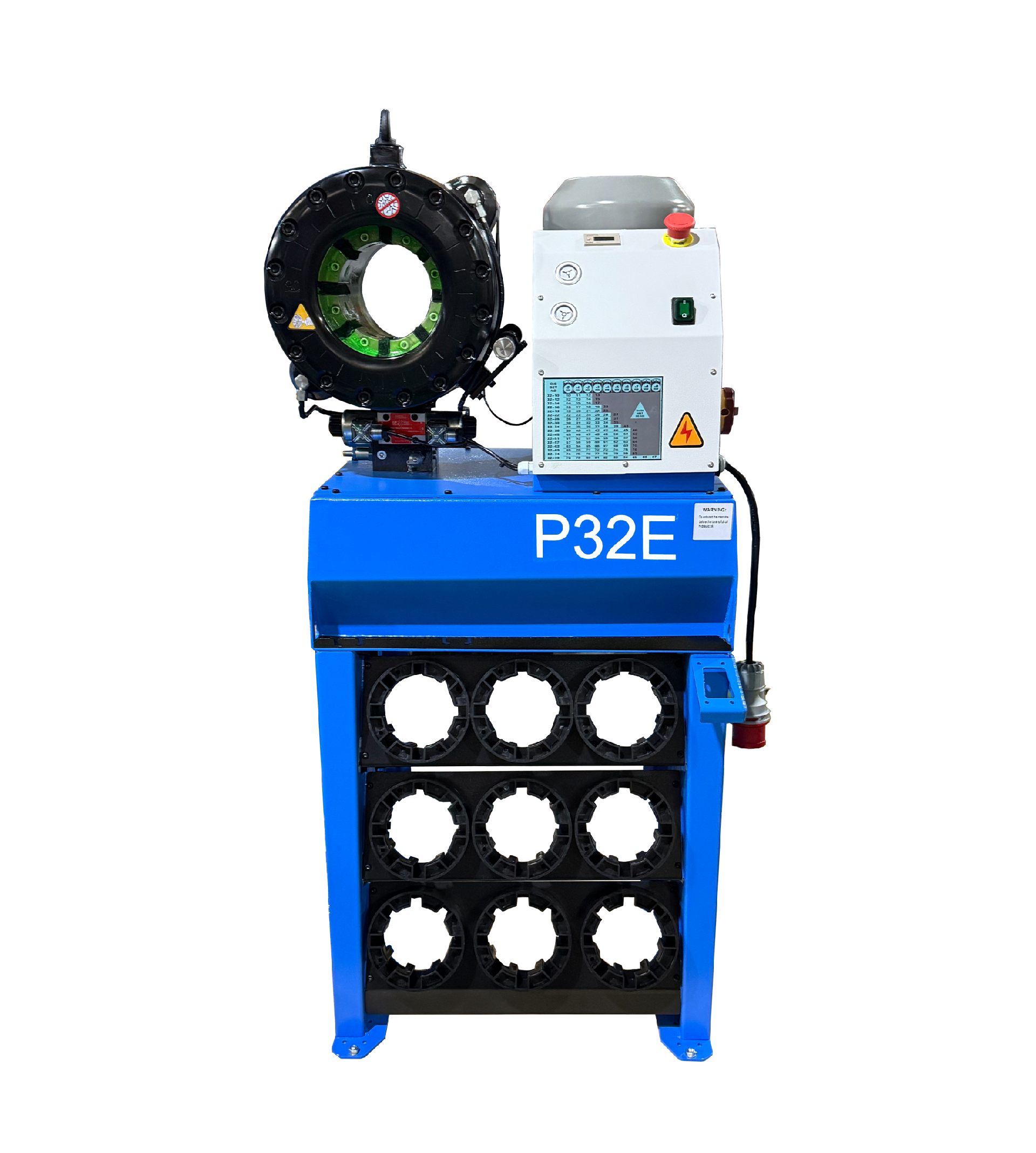

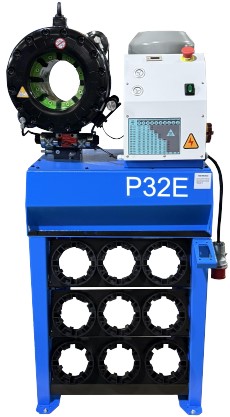

Yuben P32E hose-crimping machine has been designedto crimp up to 2” diameter 4-spiral hoses. The operating height is very ergonomic, fast and easy to use. Perfect for workshop use.
FEATURES
Yuben P32E hose-crimping machine has been designedto crimp up to 2” diameter 4-spiral hoses. The operating height is very ergonomic, fast and easy to use. Perfect for workshop use.
CNC SYSTEM FEATURES
No info
TECHNICAL DATA
| TECHNICAL DATA | |
| Max crimping dia (mm) | 10-87 |
| Max crimping dia (inches) | 0.39-3.42 |
| Max. crimping force (kN) | 2000 |
| Max. crimping force (Tonnage) | 200 |
| Cycle time 10 mm (s) Tri/Mono | 3.3/5.5 |
| Hose size ID (inches) | 2 |
| Dies set series | P32 |
| Max. opening (mm) | +33 |
| Max.opening without dies (mm) | 132 |
| Master die D / L (mm) | 99/80 |
| Master die D / L (inches) | 3.90/3.15 |
| Motor Tri/Mono (KW/HP) | 3.7/5 4/5.3 |
| Oil tank volume(L) | 32 |
| Crimping/hour | 700/850 |
| Motor Voltage (V): Tri | 200/220/380/440 |
| Motor Voltage (V): Mono | 110/115/220/230/240 |
DIMENSIONS(L x W x H)
| DIMENSIONS (L x W x H) | |
| Machine (mm) | 840X600X1400 |
| Machine (inch) | 33X23.6X55.1 |
| Package (mm) | 925X765X890 |
| Package (inch) | 36.4X30.1X35.0 |
WEIGHT(KG)
| WEIGHT (KG) | |
| Machine N.W. | 286 |
| Machine G.W. | 310 |
STANARD FEATURES
| *Foot pedal |
| *Dies rack |
| *Quick change Tool |
Dies
| P32 Dies: | |||
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P32/06* | 6.0-8.0 | 6 | 25 |
| P32/08* | 8.0-10.0 | 8 | 25 |
| P32/10* | 10.0-12.0 | 10 | 55 |
| P32/12* | 12.0-14.0 | 12 | 55 |
| P32/14 | 14.0-16.0 | 14 | 55 |
| P32/16 | 16.0-19.0 | 16 | 55 |
| P32/19 | 19.0-22.0 | 19 | 55 |
| P32/22 | 22.0-26.0 | 22 | 70 |
| P32/26 | 26.0-30.0 | 26 | 70 |
| P32/30 | 30.0-34.0 | 30 | 70 |
| P32/34 | 34.0-39.0 | 34 | 75 |
| P32/39 | 39.0-45.0 | 39 | 75 |
| P32/45 | 45.0-51.0 | 45 | 90 |
| P32/51 | 51.0- 57.0 | 51 | 90 |
| P32/57 | 57.0-63.0 | 57 | 100 |
| P32/63 | 63.0-69.0 | 63 | 100 |
| P32/69* | 69.0-75.0 | 69 | 100 |
| P32/74* | 74.0-80.0 | 74 | 100 |
| P32/78* | 78.0-87.0 | 78 | 100 |
| *: Non standard die | |||
