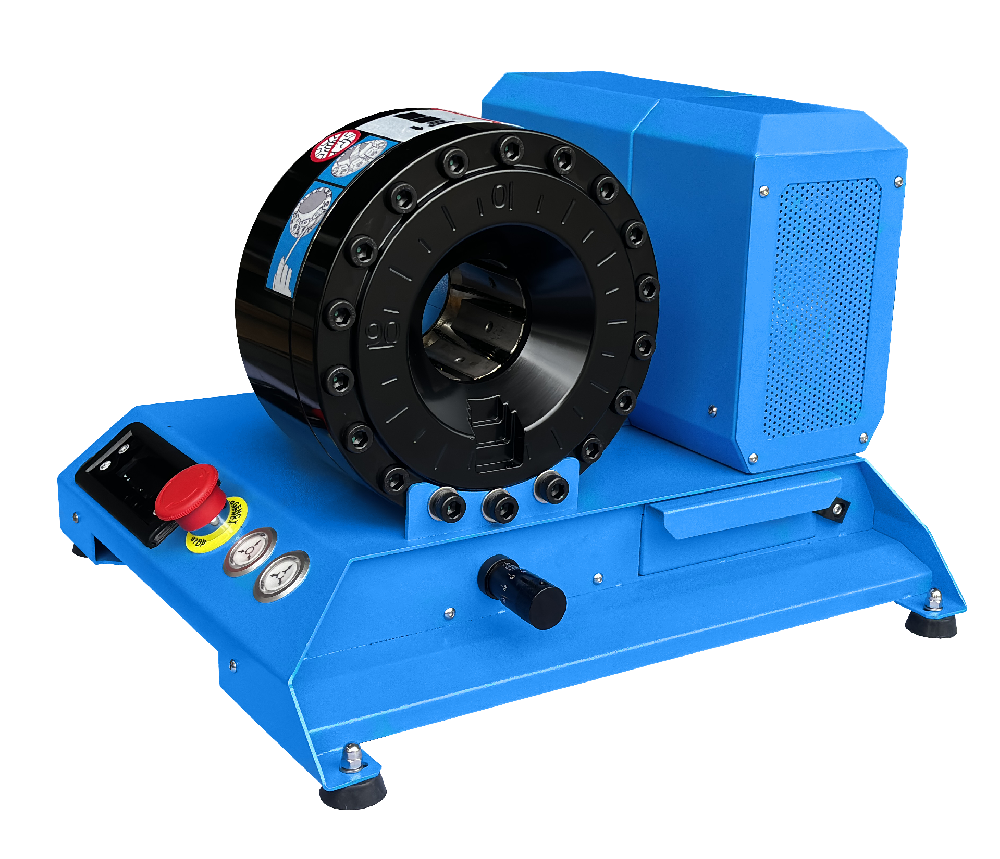

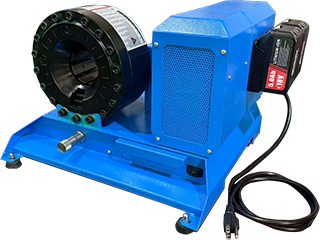

P18XL hose-crimping machine hasbeen designed to crimp up to 1” diameter 4-spiral hoses. It is small hydraulic crimping machine for repair workshops and field use. Easyto use, light and compact in size. This is a combination of DC18V working power and AC 110V/220V working power.
FEATURES
P18XL hose-crimping machine hasbeen designed to crimp up to 1” diameter 4-spiral hoses. It is small hydraulic crimping machine for repair workshops and field use. Easyto use, light and compact in size. This is a combination of DC18V working power and AC 110V/220V working power.
CNC SYSTEM FEATURES
No. info
TECHNICAL DATA
| TECHNICAL DATA | |
| Max crimping dia (mm) | 10-54 |
| Max crimping dia (inches) | 0.39-2.13 |
| Max. crimping force (kN) | 950 |
| Max. crimping force (Tonnage) | 95 |
| Cycle time 10 mm (s) | ___ |
| Hose size ID (inches) | 1''4SP |
| Dies set series | P18 |
| Max. opening (mm) | +20 |
| Max.opening without dies (mm) | 68 |
| Master die D / L (mm) | 48/64 |
| Master die D / L (inches) | 1.89/2.52 |
| Motor Power (W) | 300W |
| Oil tank volume (L) | 26 |
| Crimping / hour | ___ |
| Motor voltage(V):Tri | 200/220/380 |
| Motor voltage(V):Mono | 110/115/220/230/240 |
| Motor voltage(V):DC | 18V |
DIMENSIONS(L x W x H)
| DIMENSIONS (L x W x H) | |
| Machine (mm) | 460X400X320 |
| Machine (inch) | 18.11X15.75X22.6 |
| Package (mm) | 625X505X510 |
| Package (inch) | 24.60X19.9X20.1 |
WEIGHT(KG)
| WEIGHT (KG) | |
| Machine N.W. | 35 |
| Machine G.W. | 45 |
STANARD FEATURES
Dies
| P18 Dies: | |||
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P18/06* | 6.0-8.0 | 6 | 55 |
| P18/08* | 8.0-10.0 | 8 | 55 |
| P18/10* | 10.0-12.0 | 10 | 55 |
| P18/12* | 12.0-14.0 | 12 | 55 |
| P18/14 | 14.0-16.0 | 14 | 55 |
| P18/16 | 16.0-19.0 | 16 | 55 |
| P18/19 | 19.0-23.0 | 19 | 55 |
| P18/23 | 23.0-27.0 | 23 | 55 |
| P18/27 | 27.0-31.0 | 27 | 65 |
| P18/31 | 31.0-36.0 | 31 | 65 |
| P18/36 | 36.0-41.0 | 36 | 65 |
| P18/41 | 41.0-47.0 | 41 | 65 |
| *: Non standard die | |||
