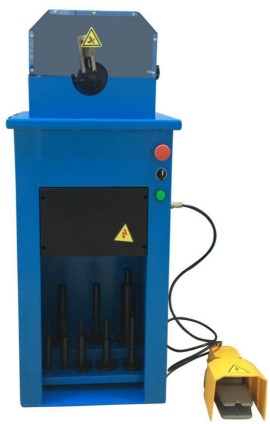

Yuben S50 hose-skiving machine has been designed to skive hydraulic hoses from diameter 3/16" to 2". For workshop use.
FEATURES
Yuben S50 hose-skiving machine has been designed to skive hydraulic hoses from diameter 3/16" to 2". For workshop use.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Hose capacity, external inch | 1/4“-2” |
| Hose capacity, internal inch | 3/4“-2” |
| Electric motor(kw) | 0.4kw |
| Speed of tool rotation | 145r/min |
| Motor Voltage (V)：Tri | 200/220/380 |
| Motor Voltage (V)：Mono | 220/230/240 |
DIMENSIONS(L x W x H)
| Machine(mm) | 400X580X1050 |
| Machine(inch) | 15.75X22.8X41.3 |
| Package(mm) | 535X685X1225 |
| Package(inch) | 21.1X27X48.2 |
WEIGHT(KG)
| N, W. | 57 |
| G.W. | 69 |
STANARD FEATURES
STANDARD SKIVING KIT
| External (inch) | 1/4 |
| 5/16 | |
| 3/8 | |
| 1/2 | |
| 5/8 | |
| 3/4 | |
| External & Internal (inch) | 1 |
| 1 1/4 | |
| 1 1/2 | |
| 2 |
