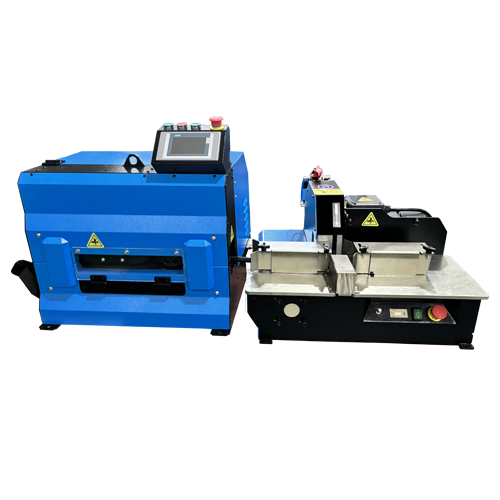

Yuben C300D hose-cutting machine has been designed to cut up to 1” diameter 2-spiral hoses. And for workshop use. Two functions: automatic cutting and manual cutting, suitable for mass production, simple operation and stable function, YB-C300D FEATURES accurate repeated size +-0.2mm.
FEATURES
Yuben C300D hose-cutting machine has been designed to cut up to 1” diameter 2-spiral hoses. And for workshop use. Two functions: automatic cutting and manual cutting, suitable for mass production, simple operation and stable function, YB-C300D FEATURES accurate repeated size +-0.2mm.
CNC SYSTEM FEATURES
No. info
TECHNICAL DATA
| TECHNICAL DATA | |
| Max.hose size(inches) | 1*2SH |
| Diameter(blade),ext.(mm) | 300*4*32 |
| Air power | ___ |
| Motor(KW):Tri/Mono | 4/2.2 |
| Motor(HP):Tri/Mono | 5.3/2.99 |
| Velocity,50HZ(rpm) | 2850 |
| Velocity,60HZ(rpm) | 3370 |
| Motor Voltage(V):Tri | 220V/380V |
| Motor Voltage(V):Mono | 220V |
DIMENSIONS(L x W x H)
| DIMENSIONS (L x W x H) | |
| Machine (mm) | 1300X600X600 |
| Machine (inch) | 51.2X23.6X23.6 |
| Package (mm) | 1400X700X700 |
| Package (inch) | 55.1X27.5X27.5 |
WEIGHT(KG)
| WEIGHT (KG) | |
| Machine N.W. | 125 |
| Machine G.W. | 150 |
STANARD FEATURES
| STANDARD FEATURES |
| ※Toothed Blade(Spanish) |
