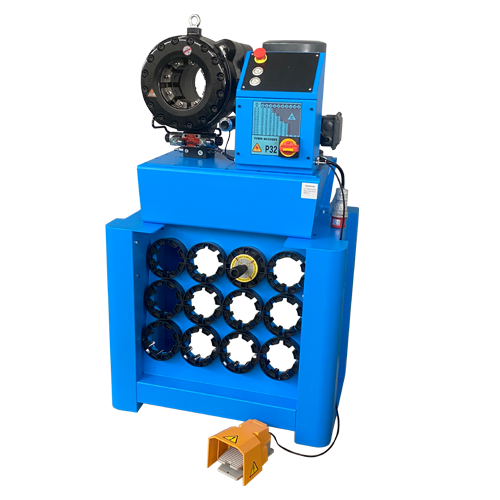

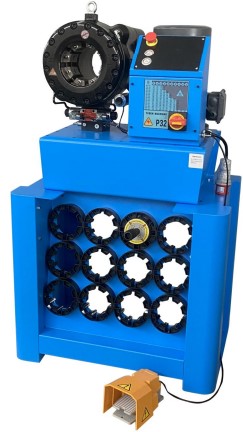

Yuben P32 hose-crimping machine has been designed to crimp up to 2” diameter4-spiral hoses. And for workshop use. It is fast and easy to use.
FEATURES
Yuben P32 hose-crimping machine has been designed to crimp up to 2” diameter4-spiral hoses. And for workshop use. It is fast and easy to use.
CNC SYSTEM FEATURES
TECHNICAL DATA
| Max crimping dia (mm) | 10-87 |
| Max crimping dia (inches) | 0.39-3.42 |
| Max. crimping force (kN) | 2000 |
| Max. crimping force (tonnage) | 200 |
| Cycle time 10 mm (s) | 7.5 |
| Hose size ID (inches) | 2" (4SH) / 1 1/2"(6SH) |
| Dies set series | P32 |
| Max. opening (mm) | +33 |
| Max.opening without dies (mm) | 132 |
| Master die D / L (mm) | 99/80 |
| Master die D / L (inches) | 3.90/3.15 |
| Motor (kW) 12V/24V | 1.6/2.25 |
| Motor (HP) 12V/24V | 2.1/3.05 |
| Oil tank volume (L) | 32 |
| Crimping /hour | 700/850 |
| Motor voltage(V): Tri | 200/220/380/440 |
| Motor voltage(V): Mono | 220/230/240 |
DIMENSIONS(L x W x H)
| Machine (mm) | 840X600X1400 |
| Machine (inch) | 33X23.6X55.1 |
| Package (mm) | 925X765X890 |
| Package (inch) | 36.4X30.1X35.0 |
WEIGHT(KG)
| N, W. | 286 |
| G.W. | 310 |
STANARD FEATURES
| ※QuickChange-tool |
| ※Die wall racks |
OPTIONS
| ※Foot pedal |
P32Dies:
| DieSetNo | Crimping range | ID (mm) | L (mm) |
| P32/06* | 6.0 - 8.0 | 6 | 55 |
| P32/08* | 8.0 - 10.0 | 8 | 55 |
| P32/10* | 10.0 - 12.0 | 10 | 55 |
| P32/12* | 12.0 - 14.0 | 12 | 55 |
| P32/14* | 14.0 - 16.0 | 14 | 55 |
| P32/16 | 16.0 - 19.0 | 16 | 55 |
| P32/19 | 19.0 - 22.0 | 19 | 55 |
| P32/22 | 22.0 - 26.0 | 22 | 70 |
| P32/26 | 26.0 - 30.0 | 26 | 70 |
| P32/30 | 30.0 - 34.0 | 30 | 70 |
| P32/34 | 34.0 - 39.0 | 34 | 75 |
| P32/39 | 39.0 - 45.0 | 39 | 75 |
| P32/45 | 45.0 - 51.0 | 45 | 90 |
| P32/51 | 51.0 - 57.0 | 51 | 90 |
| P32/57 | 57.0 -63.0 | 57 | 100 |
| P32/63 | 63.0 - 69.0 | 63 | 100 |
| P32/69 | 69.0 - 75.0 | 69 | 100 |
| P32/74* | 74.0 - 80.0 | 74 | 100 |
| P32/78* | 78.0 - 87.0 | 78 | 100 |
| *: Non standard die | |||
| With adapter dies | |||
CONTROL
| ※Semi-Automatic |
